The D-Link DIR-853 (AC1300) is a Wi-Fi router that plugs into your connection box with an Ethernet cable. This guide shows how to set up its internet connection for Quokka Net, and what its lights and ports are.

The DIR-853 has no DSL port, so it can’t plug into a phone socket on its own. On nbn FTTN or FTTB, use a modem router like the NetComm NF18Mesh instead.

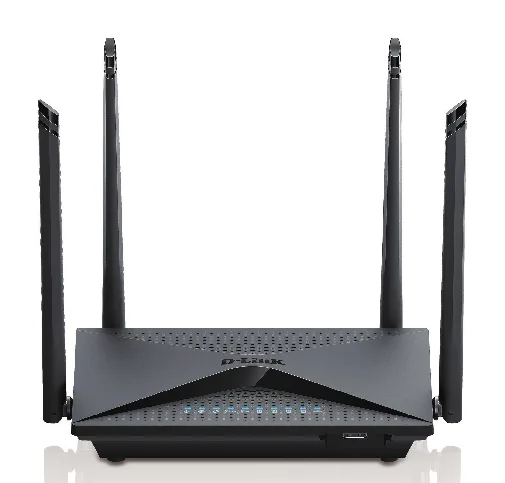

The D-Link DIR-853

Set up the internet connection

  1. Connect an Ethernet cable from the router’s WAN port to the Ethernet port on your connection box (the nbn box, or your fibre network’s box).
  2. Connect your computer to the router with an Ethernet cable or over Wi-Fi.
  3. Open a web browser and go to http://dlinkrouter.local or http://192.168.0.1.
  4. Enter the admin password. If you haven’t set one yet, leave it blank. Click Log In.
  5. In the Settings menu at the top, click Internet.
  6. Choose the connection type in the activation email we sent when your service was connected:
    • Dynamic IP (like Opticomm, SUPA Networks, VostroNet and some nbn services): choose Dynamic IP (DHCP). There’s no username or password.
    • PPPoE (like Neoloop and some nbn services): choose PPPoE, and enter the Username and Password from the email. Set Reconnect Mode to Always on.
  7. Click Save.

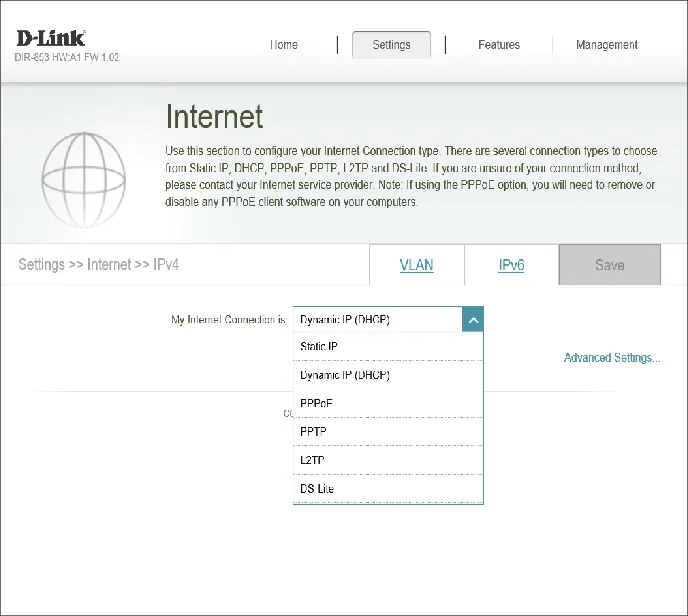

The Internet settings page, with the connection type list open: Static IP, Dynamic IP (DHCP), PPPoE, PPTP, L2TP and DS-Lite

The PPPoE settings, with the username, password and reconnect mode

You can also run the setup wizard again: in the Settings menu, click Wizard.

Check your connection

On the router’s home page, click the Internet icon, then IPv4, to see whether it’s connected.

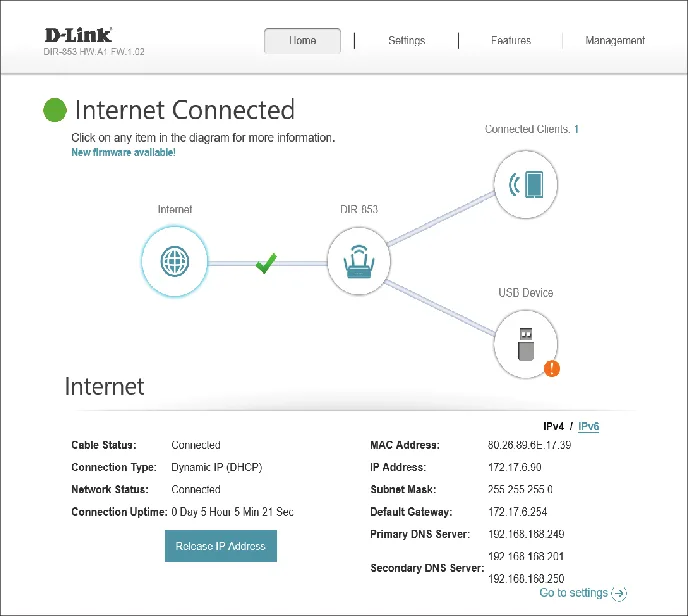

The router’s home page, showing the internet connection status

Lights on the front

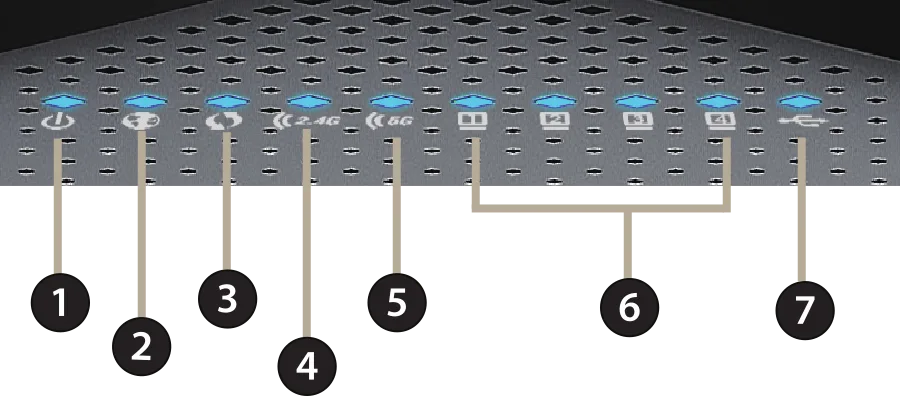

The lights on the front of the DIR-853, numbered 1 to 7

  1. Power: solid blue when powered on. Solid orange while starting up.
  2. Internet: solid when connected to the internet. Orange means the router can’t connect: check the connection type, username and password.
  3. WPS: flashes while a device connects with WPS, then stays on.
  4. 2.4 GHz Wi-Fi: on when the 2.4 GHz network is on.
  5. 5 GHz Wi-Fi: on when the 5 GHz network is on.
  6. LAN 1 to 4: on when a device is plugged into that port. Flashes when data is moving.
  7. USB: on when a USB storage device is plugged into the USB 3.0 port.

Ports and buttons on the back

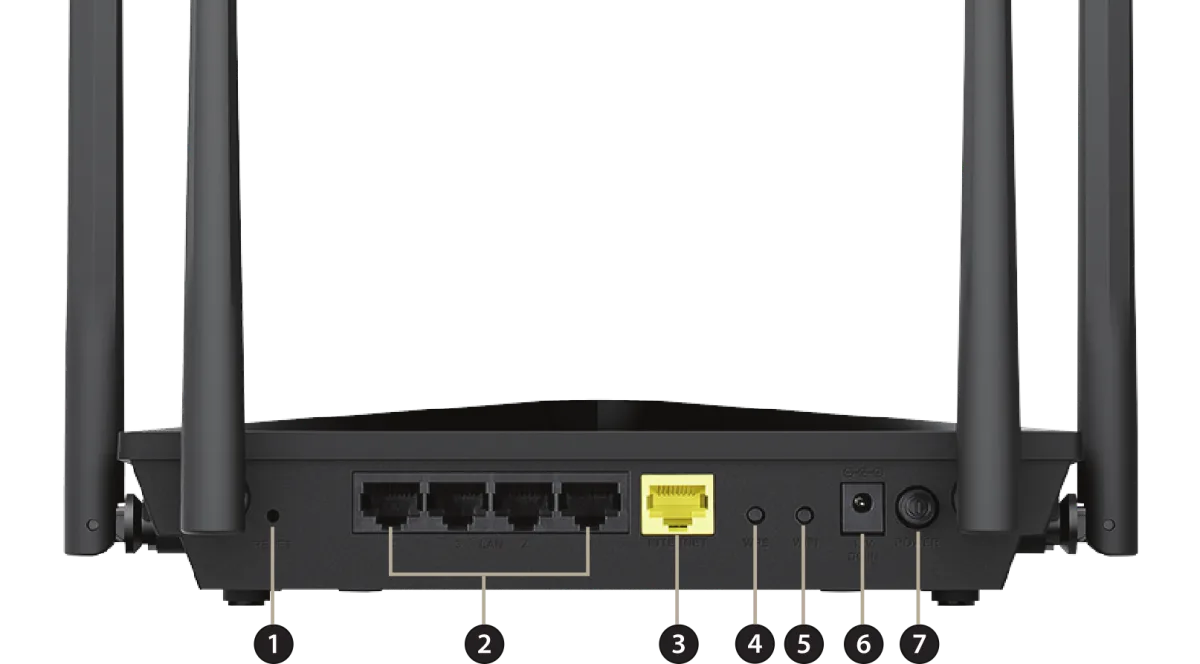

The back of the DIR-853, numbered 1 to 7

  1. Reset: press with a paperclip for 10 seconds to reset the router to factory settings. Use this if you’ve forgotten the admin password.
  2. Gigabit LAN ports (1 to 4): for wired devices like computers, game consoles and network storage.
  3. Gigabit WAN port: connect to your connection box.
  4. WPS button: connect a device without a password.
  5. Wi-Fi button: turns Wi-Fi on.
  6. Power connector: for the power adapter.
  7. Power button: turns the router on and off.

Still not working?

Restart the router and your connection box, then report a problem or call us on 1800 663 977. For more detail, see D-Link’s DIR-853 manual.
